DC Current Source 6181B & C

DC Current Source 6181B & C; Hewlett-Packard, HP; (ID = 1500021) Equipment DC Current Source 6181B & C; Hewlett-Packard, HP; (ID = 1883658) Equipment
DC Current Source 6181B & C; Hewlett-Packard, HP; (ID = 1883659) Equipment DC Current Source 6181B & C; Hewlett-Packard, HP; (ID = 1883660) Equipment
DC Current Source 6181B & C; Hewlett-Packard, HP; (ID = 1883661) Equipment
Use red slider bar for more.
DC Current Source 6181B & C; Hewlett-Packard, HP; (ID = 1500021) Equipment
Hewlett-Packard, HP;: DC Current Source 6181B & C [Equipment] ID = 1500021 933x367
Select picture or schematic to display from thumbnails on the right and click for download.
For model DC Current Source 6181B & C, Hewlett-Packard, (HP); Palo Alto, CA:

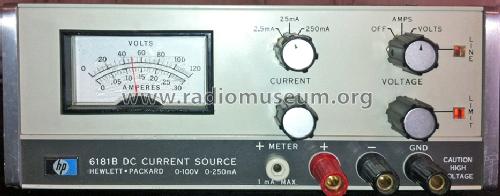

Vista frente

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1975 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: DC Current Source 6181B & C - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 198 x 76 x 279 mm / 7.8 x 3 x 11 inch
Notes

Konstantstromquelle, 100V / 250 mA, Strombereich 2,5 mA, 25 mA und 250 mA, Spannung und Strom sep. einstellbar, Anzeige von Srrom auf Spannung umschaltbar, Ausgangsbuchsen GND, Plus, Minus und Guard (Sens).

This supply is designed for applications requiring a constant current source with a high degree of regulation and stability and very low ripple characteristics.The use of a three-position output RANGE switch and a 10-turn output CURRENT control result in resolution down to 0.5 µA.

It is of Constant Current/Voltage Limiting type that will furnish full rated output current at the maximum rated output voltage or can be continuously adjusted throughout the output range. The front panel VOLTAGE control is used to establish the output voltage limit (ceiling) when the supply is used as a constant current source.

The power supply has both front and rear terminals.

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Mentioned in - - Manufacturers Literature (Hp 1975 Catalogue (B type) and Hp 1977 Catalogue (C type))

Model page created by Thomas Jennen. See "Data change" for further contributors.
