Distortion Measurement Set 339A

Distortion Measurement Set 339A; Hewlett-Packard, HP; (ID = 1645043) Equipment
Use red slider bar for more.
Distortion Measurement Set 339A; Hewlett-Packard, HP; (ID = 1645043) Equipment

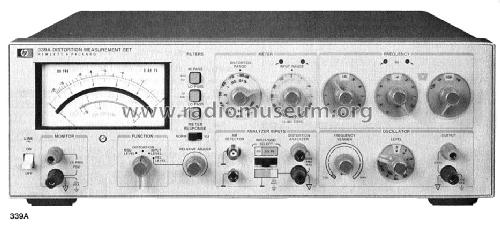

Hewlett-Packard, HP;: Distortion Measurement Set 339A [Equipment] ID = 1645043 933x421
Select picture or schematic to display from thumbnails on the right and click for download.
For model Distortion Measurement Set 339A, Hewlett-Packard, (HP); Palo Alto, CA:
Source: hp catalogue Electronic Instruments and Systems, 1979, p.530

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1978 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100; 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Distortion Measurement Set 339A - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 426 x 146 x 442 mm / 16.8 x 5.7 x 17.4 inch
Notes

Hewlett-Packard's Model 339A Distortion Measurement Set is an ultra low distortion measuring system complete with total harmonic distortion (THD) analyzer, true-rms voltmeter, and sine-wave oscillator. This set allows to make THD distortion measurements as low as 0.0018% over a 10 Hz to 110 kHz frequency band including harmonics to 330 kHz.

Net weight (2.2 lb = 1 kg) 8.2 kg / 18 lb 1 oz (18.062 lb)
Mentioned in - - Manufacturers Literature (hp catalogue Electronic Instruments and Systems, 1978 p.469 and 1979 p.530)
Literature/Schematics (1) Funkschau (18/1979, S. 1065 - 1067)

Model page created by Armin Sollberger. See "Data change" for further contributors.
