Electronic Counter 5316b

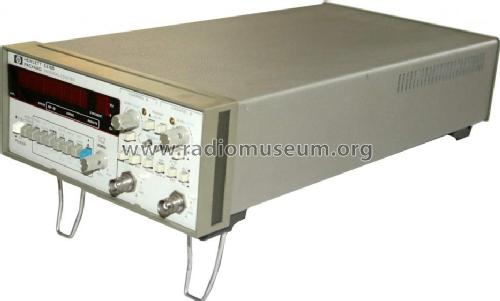

Electronic Counter 5316b; Hewlett-Packard, HP; (ID = 652184) Equipment Electronic Counter 5316b; Hewlett-Packard, HP; (ID = 652186) Equipment
Electronic Counter 5316b; Hewlett-Packard, HP; (ID = 652187) Equipment
Use red slider bar for more.

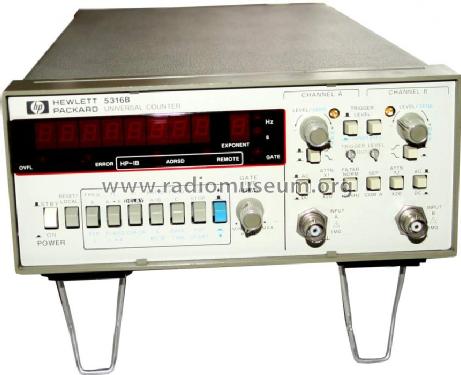

Electronic Counter 5316b; Hewlett-Packard, HP; (ID = 652184) Equipment
Hewlett-Packard, HP;: Electronic Counter 5316b [Equipment] ID = 652184 861x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electronic Counter 5316b, Hewlett-Packard, (HP); Palo Alto, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1980 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100; 120; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Electronic Counter 5316b - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 98 x 212 x 415 mm / 3.9 x 8.3 x 16.3 inch
Notes Two Channel programmable Universal Counter capable of measuring up to 100 MHz.
The instrument's basic measurement functions include Frequency, Period, Time, Time Delay, Ratio, Time Delay with Average, and Totalize. HPIB capability.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)

Model page created by Danko Tkalec. See "Data change" for further contributors.
