Sweep Oscillator 693-D

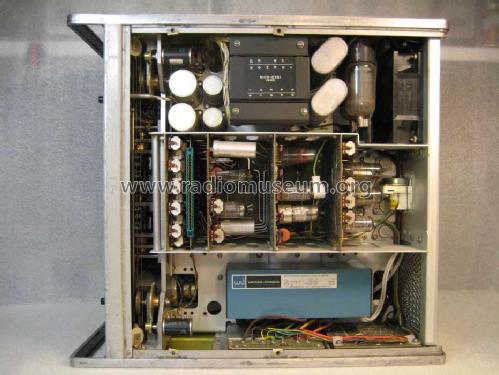

Sweep Oscillator 693-D; Hewlett-Packard, HP; (ID = 435226) Equipment Sweep Oscillator 693-D; Hewlett-Packard, HP; (ID = 435227) Equipment
Sweep Oscillator 693-D; Hewlett-Packard, HP; (ID = 435228) Equipment Sweep Oscillator 693-D; Hewlett-Packard, HP; (ID = 435229) Equipment
Sweep Oscillator 693-D; Hewlett-Packard, HP; (ID = 435231) Equipment
Use red slider bar for more.
Sweep Oscillator 693-D; Hewlett-Packard, HP; (ID = 435226) Equipment
Hewlett-Packard, HP;: Sweep Oscillator 693-D [Equipment] ID = 435226 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sweep Oscillator 693-D, Hewlett-Packard, (HP); Palo Alto, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1966 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115-230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Sweep Oscillator 693-D - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 426 x 221 x 483 mm / 16.8 x 8.7 x 19 inch
Notes Range 4-8 GHz. Sweep width ±20 MHz. Two markers. Output 15 mW. Employs tubes and transistors.
Net weight (2.2 lb = 1 kg) 27.2 kg / 59 lb 14.6 oz (59.912 lb)
Source of data - - Data from my own collection

Model page created by Eero Ukkola. See "Data change" for further contributors.
