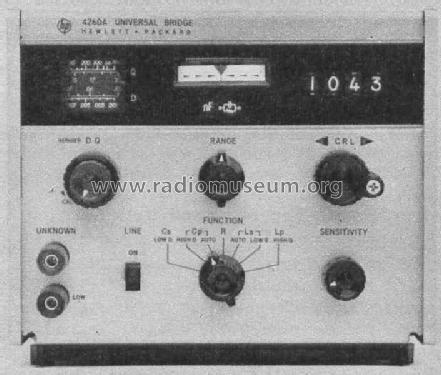

Universal Bridge 4260A; Hewlett-Packard, HP; (ID = 537204) Equipment
Hewlett-Packard, HP;: Universal Bridge 4260A [Equipment] ID = 537204 707x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universal Bridge 4260A, Hewlett-Packard, (HP); Palo Alto, CA:
Funktechnik 15. 1967

Country:  United States of America (USA)
Manufacturer / Brand:  Hewlett-Packard, (HP); Palo Alto, CA
Year: 1966 ? Category: Service- or Lab Equipment
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universal Bridge 4260A - Hewlett-Packard, HP; Palo Alto
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 190 x 166 x 279 mm / 7.5 x 6.5 x 11 inch
Notes The Yokogawa-Hewlett-Packard (YHP) Model 4260A Universal Bridge was the first product of the corporation's agreement (1963) of HP and Yokogawa Electric Works, Ltd., of Tokyo.

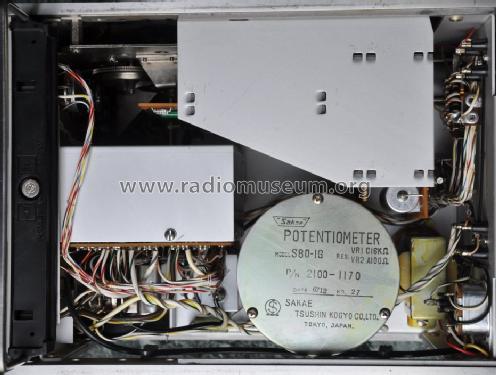

The unit makes fast, easy measurements of resistance (R) , capacitance (C), inductance (L), capacitor dissipation factor (D), or inductance quality factor (Q). The instrument includes five bridge circuits, selected by the FUNCTION switch, as well as the detector and 1 kHz oscillator necessary for dc and ac measurements. For measurements at frequencies other than 1 kHz, an external oscillator must be used.

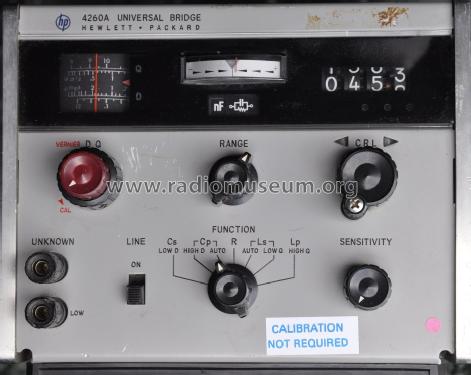

Front panel controls select the measurement function and range, with R, L, and C values displayed with four-digit resolution on an in-line, digital counter. Q and D values are displayed on a dial with a red hairline indicating the measured value. The auto-balance circuit and an easy-to-read meter reduce the time required for measuring low Q or high D components.
Correct decimal point location is automatic and direction lights indicate which way the CRL control should be rotated for the measurement.
Capacitance 1 pF to 1000 μF in 7 ranges.

Inductance 1 μH to 1000 H in 7 ranges

Resistance 10 mΩ to 10 MΩ in 7 ranges.
Made in Tokyo.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 550.00 $
Source of data - - Manufacturers Literature

Model page created by Roy Johnson. See "Data change" for further contributors.
