Dual Channel Oscilloscope 1220A

• Country
• United States of America (USA)

• Manufacturer / Brand
• Hewlett-Packard, (HP); Palo Alto, CA

• Year
• 1976 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 186798

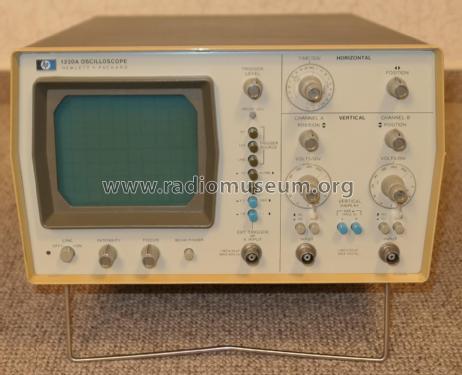

• Picture

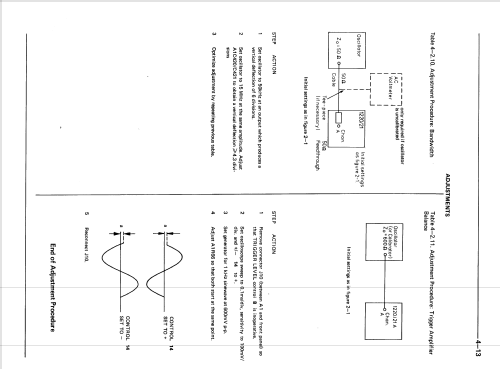

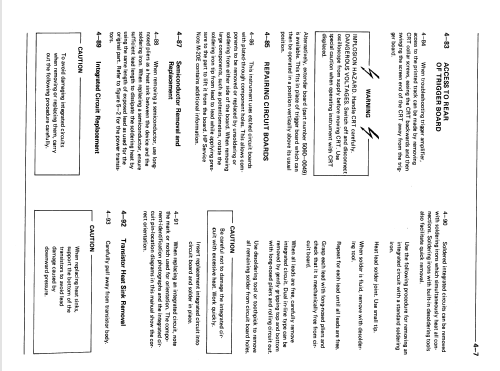

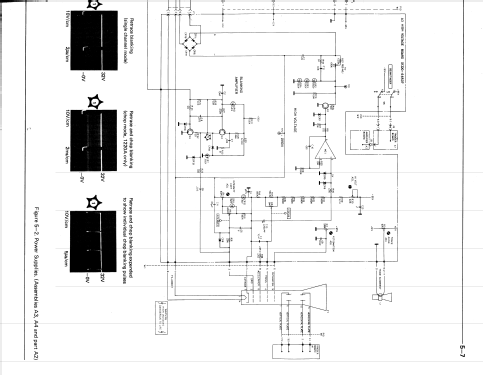

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: Dual Channel Oscilloscope 1220A - Hewlett-Packard, HP; Palo Alto

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 310 x 170 x 400 mm / 12.2 x 6.7 x 15.7 inch

• Notes
• Screen size: 10 x 8cm.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 2'300.00 DM

• Mentioned in
• Funk-Technik (FT) (21/76 Seite 701)

• Author
• Model page created by Egon Strampe. See "Data change" for further contributors.
