• Year
  • 1974 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 304967

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage

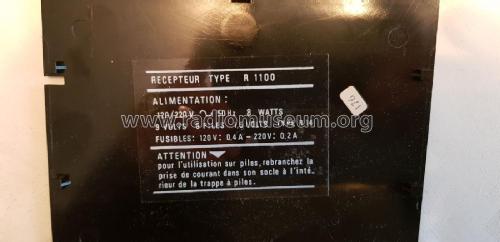

  • Line / Batteries (any type) / 120-220 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: R 1100 - Hifivox - Production Barbieri;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 285 x 185 x 75 mm / 11.2 x 7.3 x 3 inch
  • Notes
  • Made in Italy by Europhon

  • Author
  • Model page created by Didier Tholomier. See "Data change" for further contributors.
