Minilux TV Camera TV 11-23.0 (.1, .2, .3)

Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1340714) TV-studio Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1340713) TV-studio
Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1340730) TV-studio Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1339986) TV-studio
Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1339987) TV-studio Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1339988) TV-studio
Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1340731) TV-studio Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1340732) TV-studio
Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1340733) TV-studio Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1340766) TV-studio
Use red slider bar for more.
Minilux TV Camera TV 11-23.0 ; Hiradástechnika (ID = 1340714) TV-studio
Hiradástechnika: Minilux TV Camera TV 11-23.0 [TV-studio] ID = 1340714 861x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minilux TV Camera TV 11-23.0 (.1, .2, .3), Hiradástechnika Szövetkezet (HTSZ); Budapest:
Thanks for Mr.Sik Béla, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Hiradástechnika Szövetkezet (HTSZ); Budapest
Year: 1979 Category: Television-Camera (Broadcast, professional) and studio engineering
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 12 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Minilux TV Camera TV 11-23.0 - Hiradástechnika Szövetkezet
Material Various materials
Shape Tablemodel, slant panel.
Dimensions (WHD) 60 x 46 x 235 mm / 2.4 x 1.8 x 9.3 inch
Notes

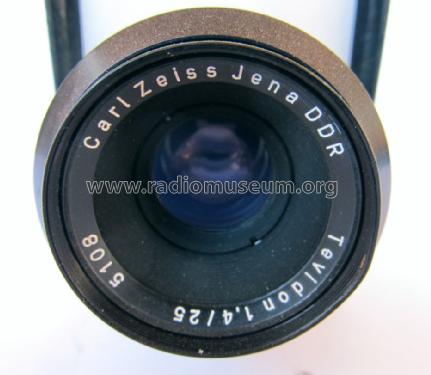

Camera Optic: dimension, diameter 85 mm, long 120 mm, 0,7 kg. Different variants like .0, .1, .2 and .3.

Net weight (2.2 lb = 1 kg) 0.650 kg / 1 lb 6.9 oz (1.432 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Hiradástechnika Szövetkezet (HTSZ); Budapest
Here you find 145 models, 124 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
