• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 354242

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• UL84

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 4 Speed Record Reproducer 2007G 2007R - His Master's Voice N.Z., Ltd.,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 5.5 x 10.25 inch / 305 x 140 x 260 mm

• Notes

• A compact, lightweight portable 4-SPEED Record Reproducer at a popular price. Provides playing facilities for 78, 45, 33⅓, and 16⅔ r.p.m. in all sizes. Simple speed selector knob... Lightweight pick-up with high gain turnover crystal cartridge for all speeds of records... Inbuilt amplifier provides excellent volume... 8" slot permanent magnet speaker...Combined volume and on-off switch... Reliable and simple speed change and drive mechanism... Case covered in green and grey 2007G or red and grey 2007R durable leathercloth... Protective feet on base and side... For AC mains only. £16/10/-

  Made in Great Britain for His Master's Voice (NZ) Ltd.

  See also GB version 4 Speed Record Reproducer 2007G 2007R

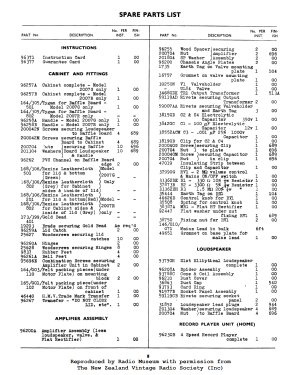

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
