38V

38V ; His Master's Voice, (ID = 1007683) Radio 38V ; His Master's Voice, (ID = 1007684) Radio

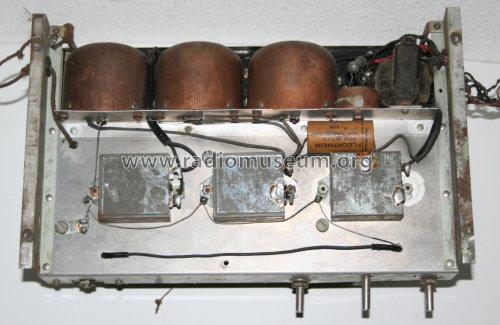

38V ; His Master's Voice, (ID = 1007686) Radio 38V ; His Master's Voice, (ID = 1007687) Radio
Use red slider bar for more.
38V ; His Master's Voice, (ID = 1007683) Radio
His Master's Voice,: 38V [Radio] ID = 1007683 500x269
Select picture or schematic to display from thumbnails on the right and click for download.
For model 38V, His Master's Voice, HMV; Montreal, Toronto

Country:  Canada
Manufacturer / Brand:  His Master's Voice, HMV; Montreal, Toronto
Year: 1928/1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 26 26 26 27 26 71A 71A 80
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 100-130 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 38V - His Master's Voice, HMV;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 600 x 250 x 270 mm / 23.6 x 9.8 x 10.6 inch
Notes For 25 Hz mains.
Source of data - - Data from my own collection

Model page created by Jürgen Bauch. See "Data change" for further contributors.
