- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105029

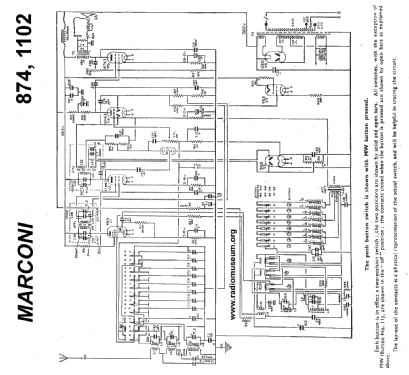

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 195-255 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1102 - His Master's Voice Masters,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 23 x 15.375 x 11.5 inch / 584 x 391 x 292 mm
- Notes
- Early receivers had a KT63 output valve, after serial number A3-3500 a KT61 output valve was fitted. Twelve push buttons, eight for preset radio stations, three for wavebands and an off button. AFC circuit for preset radio stations. The same chassis is fitted to the Marconiphone 874 model.
- Net weight (2.2 lb = 1 kg)
- 39 lb (39 lb 0 oz) / 17.706 kg
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
