• Country
• Great Britain (UK)

• Manufacturer / Brand
• HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105062

• Number of Tubes
• 5

• Valves / Tubes
• X61M KTW61M DL63 KT61 U50

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 195-255 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

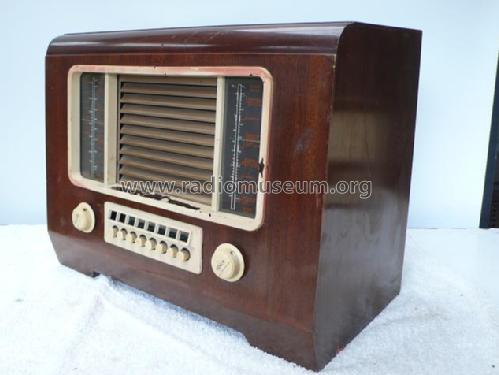

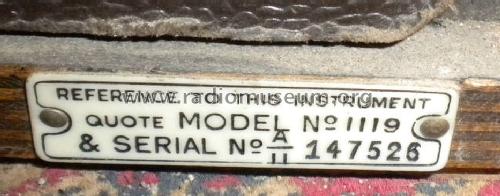

• Model: 1119 - HMV Brand, His Masters Voice,

• Shape
• Tablemodel, low profile (big size).

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Trader sheet 848

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
