- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 129183
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 195-255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1123 - His Master's Voice Masters,
- Shape

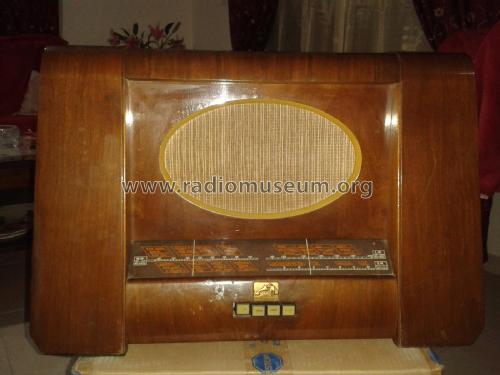

- Tablemodel with Push Buttons.
- Notes
- Pushbutton tuning for four pre-set stations. Otherwise similar to model 1122.
- Source of data
- -- Schematic
- Mentioned in

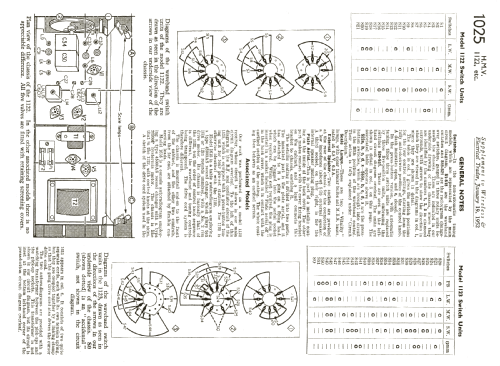

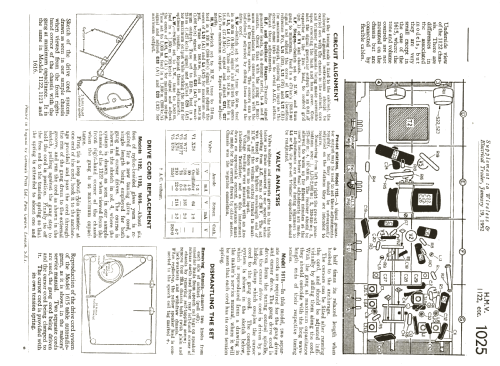

- Trader Service sheet 1025
- Author
- Model page created by Peter Hughes. See "Data change" for further contributors.
