1300

1300; His Master's Voice (ID = 1259277) Radio

1300; His Master's Voice (ID = 1259278) Radio

1300; His Master's Voice (ID = 1259279) Radio

1300; His Master's Voice (ID = 1259280) Radio
1300; His Master's Voice (ID = 2066263) Radio 1300; His Master's Voice (ID = 2066265) Radio
1300; His Master's Voice (ID = 2066266) Radio 1300; His Master's Voice (ID = 2066267) Radio

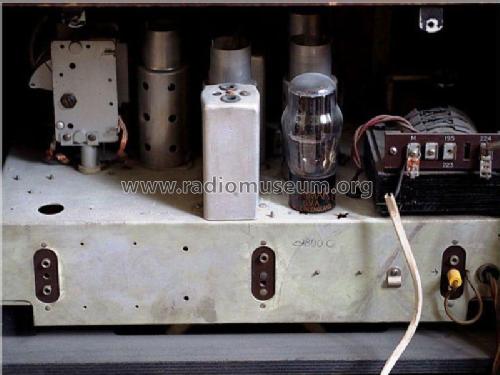

1300; His Master's Voice (ID = 2066268) Radio 1300; His Master's Voice (ID = 2066269) Radio
Use red slider bar for more.

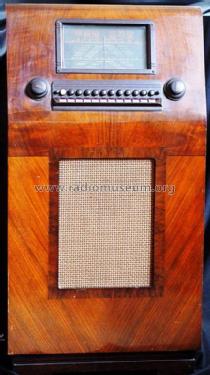

1300; His Master's Voice (ID = 2066263) Radio
His Master's Voice: 1300 [Radio] ID = 2066263 450x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1300, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
Ebay UK item number 252723545732 seller columbo321

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: X65 KTW63 DH63 KT63 U50
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 195-255 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 1300 - His Master's Voice Masters,
Material Wooden case
Shape Console with any shape - in general
Notes Similar to the Marconiphone 883 console radio.
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Trader sheet 417

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Here you find 401 models, 279 with images and 236 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
