- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 195918
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 200-255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1351 - His Master's Voice Masters,
- Shape
- Tablemodel with Push Buttons.
- Notes
- 8 push buttons, 2 for preset LW radio stations, 3 for preset MW radio stations and 3 for waveband change. Similar to the Marconiphone 893 table radio.
- Literature/Schematics (1)

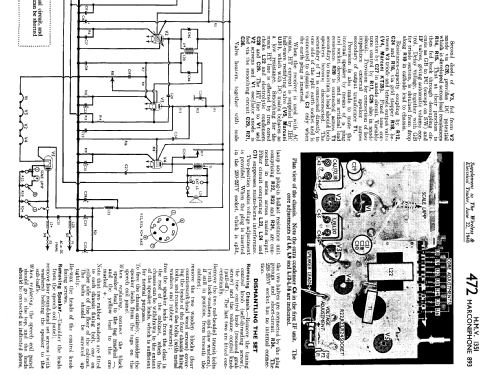

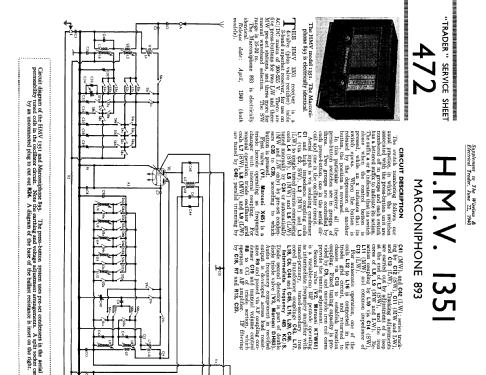

- Trader sheet 472
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
