His Master's Voice: Highlight 1816 [Television] ID = 2414357 1200x1369
Select picture or schematic to display from thumbnails on the right and click for download.
For model Highlight 1816, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
Front view - open door

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1952 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: Z152 Z152 Z152 Z152 D152 Z152 LN152 N152 U151 U152 Z152 ZD152 Z152 LN152 3/31
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage 200-255 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10.5 inch = 26.7 cm
Power out
from Radiomuseum.org Model: Highlight 1816 - His Master's Voice Masters,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Console TV set with a 12 inch Emiscope 405 line b/w CRT. The receiver is tunable by 3 pre-set controls over five GB Band I BBC TV channels. Metal rectifier. Same chassis as in the Marconiphone VC59DA model.
Source of data -- Collector info (Sammler)

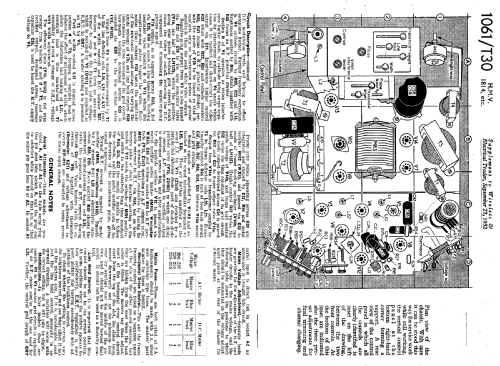

Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1061/T30)

Model page created by a member from A. See "Data change" for further contributors.
