- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1953
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 202339

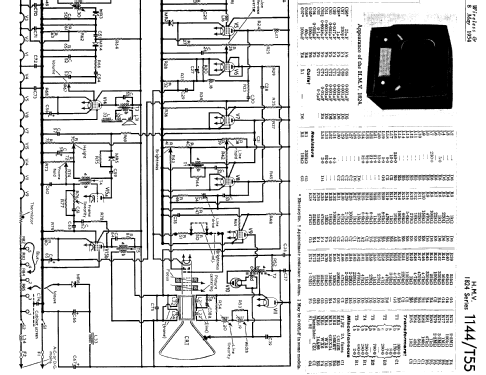

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 200-255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 inch = 26.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1825 - His Master's Voice Masters,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Console TV set with a 14 inch b/w 405 line Emiscope CRT with a 5 channel VHF GB Band 1 tuner. Metal rectifier.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1144/T55)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
