2711 BRC 3500

2711 BRC 3500; His Master's Voice (ID = 1439586) Television 2711 BRC 3500; His Master's Voice (ID = 1439588) Television
2711 BRC 3500; His Master's Voice (ID = 1439590) Television 2711 BRC 3500; His Master's Voice (ID = 1439591) Television
2711 BRC 3500; His Master's Voice (ID = 1439594) Television 2711 BRC 3500; His Master's Voice (ID = 1439596) Television
2711 BRC 3500; His Master's Voice (ID = 1439601) Television 2711 BRC 3500; His Master's Voice (ID = 1439604) Television

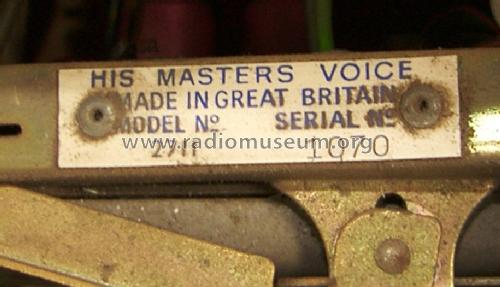

2711 BRC 3500; His Master's Voice (ID = 1439606) Television 2711 BRC 3500; His Master's Voice (ID = 1439608) Television
Use red slider bar for more.
2711 BRC 3500; His Master's Voice (ID = 1439586) Television
His Master's Voice: 2711 BRC 3500 [Television] ID = 1439586 762x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2711 BRC 3500, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1975 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A67-120X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 2711 BRC 3500 - His Master's Voice Masters,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 780 x 820 x 620 mm / 30.7 x 32.3 x 24.4 inch
Notes

Single Standard UHF colour Television.

Featuring the BRC/TCE 3500 chassis.

26" CRT with four button mechanical tuner.

HMV quality wooden cabinet with double folding doors.

Price in first year of sale 315.40 £
Mentioned in Radio And Television Servicing books (R&TVS) (Many entries on BRC 3000/3500)

Model page created by Dave Evans. See "Data change" for further contributors.
