32-48 Ch= 32

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AV6 6M5 6X4
Main principle Super-Heterodyne (Super in general); ZF/IF 457.5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220-225; 226-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 32-48 Ch= 32 - His Master's Voice HMV, H.M.V.

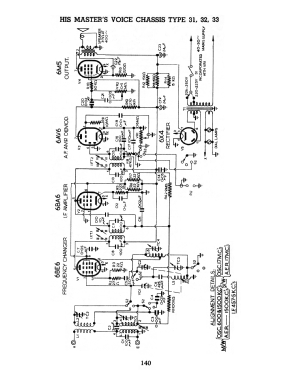

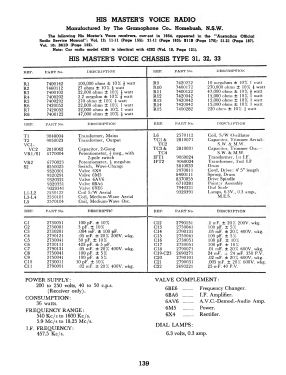

Circuit diagram reference Australian Official Radio Service Manual Vol. XIII

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Here you find 526 models, 266 with images and 210 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
