32-4R Ch= 32

His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Data
Forum
Pictures
Collections

  • Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 310591

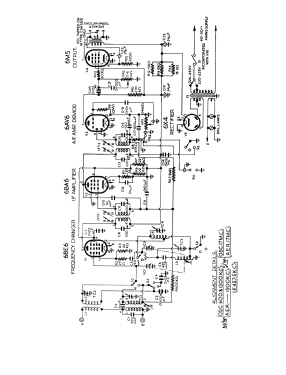

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 457.5 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 32-4R Ch= 32 - His Master's Voice HMV, H.M.V.
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 38.5 x 33.75 x 17 inch / 978 x 857 x 432 mm
  • Notes

  • Dual-wave radiogram with 4-speed BSR Monarch UA8 record changer.

    Cabinet finishes available in Walnut, Rosewood & Maple.

  • Net weight (2.2 lb = 1 kg)
  • 77 lb 0 oz (77 lb) / 34.958 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature (HMV Model Data Sheet.)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (HMV Service Manual, Chassis 32.)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
