- Country
- Australia
- Manufacturer / Brand
- His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290440

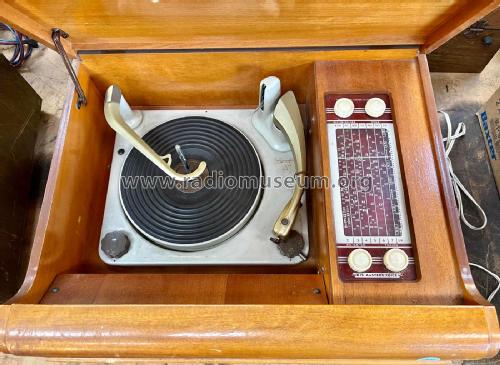

HMV 35-32 radio/record player front
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 457.5 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 35-32 Ch= 35 - His Master's Voice HMV, H.M.V.
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 21 x 9.5 x 17 inch / 533 x 241 x 432 mm
- Notes
-
3-speed auto radiogram with broadcast & short-wave bands.
- Net weight (2.2 lb = 1 kg)
- 38 lb 8 oz (38.5 lb) / 17.479 kg
- Price in first year of sale
- 72.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (HMV Service Manual for Chassis Type 35.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page H75.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
