Serenade 41-42 Ch= 41

Serenade 41-42 Ch= 41; His Master's Voice (ID = 2104729) Radio
Use red slider bar for more.
Serenade 41-42 Ch= 41; His Master's Voice (ID = 2104729) Radio

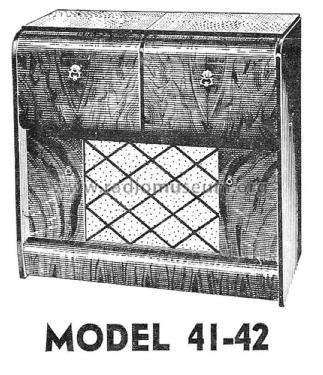

His Master's Voice: Serenade 41-42 Ch= 41 [Radio] ID = 2104729 1400x1624
Select picture or schematic to display from thumbnails on the right and click for download.
For model Serenade 41-42 Ch= 41, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6N8 6N8 6M5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 457.5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-225; 226-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Serenade 41-42 Ch= 41 - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 37.25 x 33.5 x 17.25 inch / 946 x 851 x 438 mm
Notes

This model has three short wave bands; 5.9-7.5 MHz, 9.4-12.1 MHz and 14.2-18.4 MHz.

Record changer type Garrard RC110.

Cabinet finishes available in Walnut & Rosewood.



Net weight (2.2 lb = 1 kg) 89 lb 8 oz (89.5 lb) / 40.633 kg
Price in first year of sale 141.75 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XIII
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Chassis Type 41.)
Literature/Schematics (2) - - Manufacturers Literature (HMV Model Data Sheet, 41-42.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 13, 1955, Page 146.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
