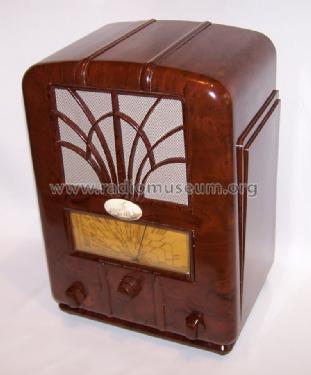

His Master's Voice: 41 Ch= 419B [Radio] ID = 1382741 760x915
Select picture or schematic to display from thumbnails on the right and click for download.
For model 41 Ch= 419B, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7G 1N5G 1H5G 1Q5G
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 90 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 0.27 W (unknown quality)
from Radiomuseum.org Model: 41 Ch= 419B - His Master's Voice HMV, H.M.V.
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 285 x 398 x 225 mm / 11.2 x 15.7 x 8.9 inch
Price in first year of sale 19.00 Aus£

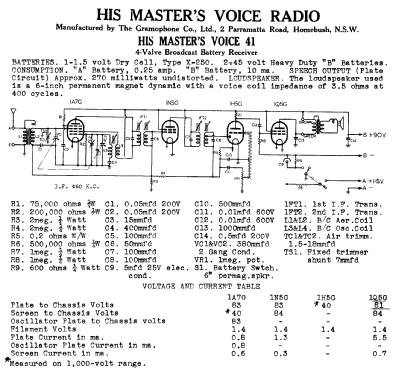

Circuit diagram reference Australian Official Radio Service Manual Vol. III
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
