Dual Wave Table Receiver 42-71 Ch= 42

Dual Wave Table Receiver 42-71 Ch= 42; His Master's Voice (ID = 1275782) Radio Dual Wave Table Receiver 42-71 Ch= 42; His Master's Voice (ID = 2144540) Radio
Use red slider bar for more.
Dual Wave Table Receiver 42-71 Ch= 42; His Master's Voice (ID = 1275782) Radio
His Master's Voice: Dual Wave Table Receiver 42-71 Ch= 42 [Radio] ID = 1275782 600x372
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Wave Table Receiver 42-71 Ch= 42, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
Ebay #120952023115 Seller:tweetytorana

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1954–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6N8 6N8 6M5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 457.5 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-220; 221-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Dual Wave Table Receiver 42-71 Ch= 42 - His Master's Voice HMV, H.M.V.
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 16 x 10.25 x 9.125 inch / 406 x 260 x 232 mm
Notes

This model has three short wave bands; 5.9-7.5 MHz, 9.4-12.1 MHz and 14.2-18.4 MHz. The speaker is 6 by 9 inch.

See also earlier version, Model C23C.

Net weight (2.2 lb = 1 kg) 18 lb 4 oz (18.25 lb) / 8.286 kg
Price in first year of sale 40.95 AUS £

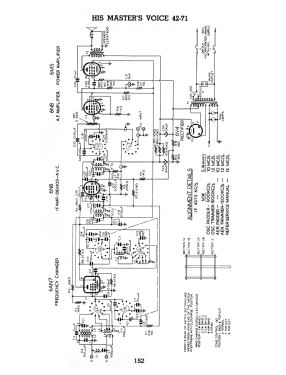

Circuit diagram reference Australian Official Radio Service Manual Vol. XIII

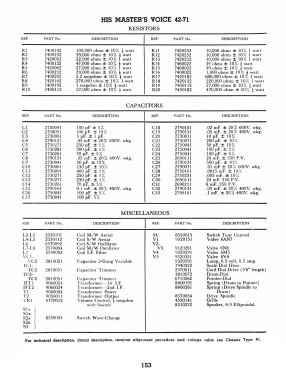

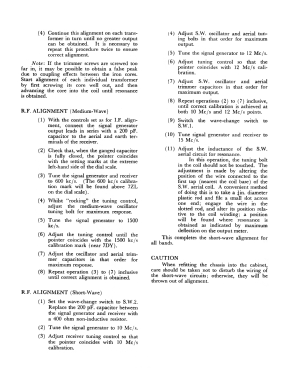

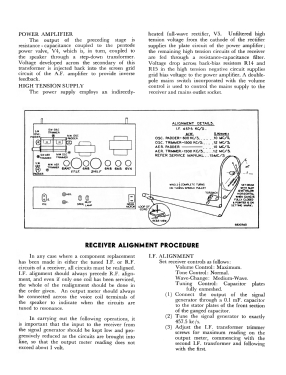

Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual & Model Data Sheet.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page H68.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 13, 1955, Page 152.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
