All-Electric Superhet Portable Fluid-Light Six 463
Use red slider bar for more.
His Master's Voice: All-Electric Superhet Portable Fluid-Light Six 463 [Radio] ID = 2046963 671x656
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1934 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: VMS4B MS4B VMS4B MHD4 MPT4 MU12 |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 123-127 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 200-250 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: All-Electric Superhet Portable Fluid-Light Six 463 - His Master's Voice Masters, |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 15 x 18 x 9 inch / 381 x 457 x 229 mm |
| Notes | Same chassis as the Marconiphone 279.
Featuring "Fluid-Light" tuning by which "arrows of fluid-light on the dial show exactly when you are on the point of perfect reception." From HMV advertisement in "Punch" magazine, 31st October 1934. |
| Price in first year of sale | 16.80 £ |
| Source of data | Radio! Radio! |

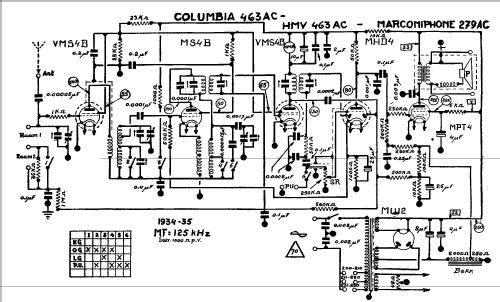

| Literature/Schematics (1) | Trader sheet 718 |
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
