521AC

521AC; His Master's Voice (ID = 964636) Radio 521AC; His Master's Voice (ID = 964637) Radio
521AC; His Master's Voice (ID = 964638) Radio 521AC; His Master's Voice (ID = 1573986) Radio
521AC; His Master's Voice (ID = 2539131) Radio
Use red slider bar for more.
521AC; His Master's Voice (ID = 964636) Radio
His Master's Voice: 521AC [Radio] ID = 964636 367x480
Select picture or schematic to display from thumbnails on the right and click for download.

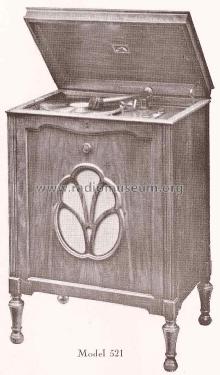

For model 521AC, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
Picture taken in the VRT Omroepmuseum

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner

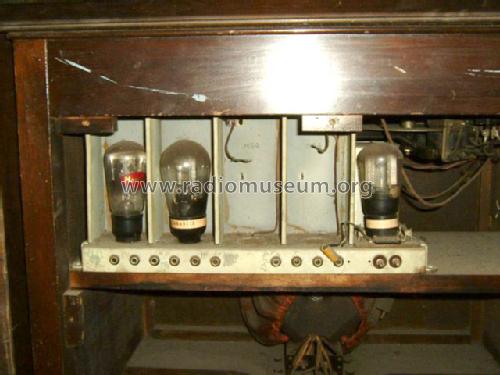

Valves / Tubes 5: MS4 MS4 MHL4 PT625 U10
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 521AC - His Master's Voice Masters,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 625 x 930 x 430 mm / 24.6 x 36.6 x 16.9 inch
Notes This set is in the VRT Omroepmuseum in Brussels
Source of data - - Data from my own collection
Literature/Schematics (1) Radio Marketing Service Engineer

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
