540 AC
Use red slider bar for more.
His Master's Voice: 540 [Radio] ID = 1356030 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1934 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: MS4B VMS4 MH4 MPT4 U12 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 125 kHz |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | Record Player (not changer) |
| Power type and voltage | Alternating Current supply (AC) / 200-250 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: 540 [AC] - His Master's Voice Masters, |
| Material | Wooden case |
| Shape | Console, Lowboy (legs < 50 %). |
| Notes | Similar to the Marconiphone 286 radiogram. |

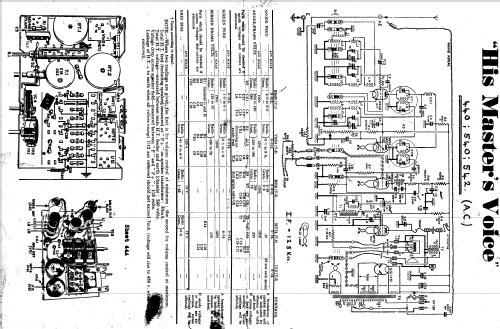

| Literature/Schematics (1) | His Master's Voice, Original Sheet |
