For model 61 Ch= 459B, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:

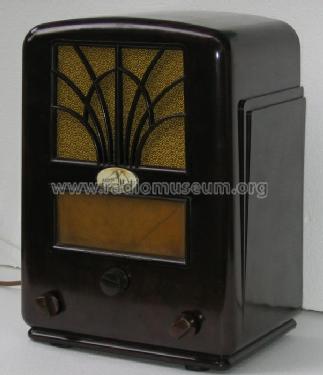

HMV model 61. Photo taken with permission from owner.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1C7G 1D5G 1F7G 1Q5G
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 0.27 W (unknown quality)
from Radiomuseum.org Model: 61 Ch= 459B - His Master's Voice HMV, H.M.V.
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 285 x 398 x 225 mm / 11.2 x 15.7 x 8.9 inch
Notes This radio uses a 2 volt synchronous vibrator power unit.
Price in first year of sale 26.00 Aus£
Circuit diagram reference Australian Official Radio Service Manual Vol. III
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
