• Country
• Great Britain (UK)

• Manufacturer / Brand
• His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105026

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• X63 KTW63 DH63 KT63 U50

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage

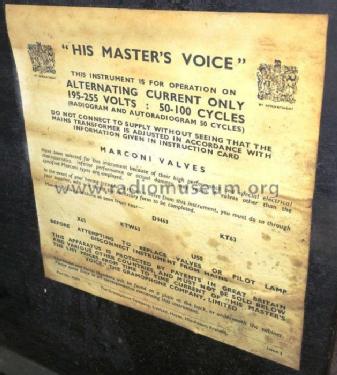

• Alternating Current supply (AC) / 195-255 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 658 - His Master's Voice Masters,

• Shape
• Tablemodel with Push Buttons.

• Notes
• Push buttons for 6 pre-set radio stations. An identical chassis is fitted in the Marconiphone 855 table radio and Marconiphone 868 console radio. A similar chassis is fitted in the Marconiphone 869 and 870 radiograms, and the HMV 665 and 666 radiograms.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (384)

• Literature/Schematics (2)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (736)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
