68/2-55

His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Data
Forum
Pictures
Collections

  • Year
  • 1974 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 340139

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 68/2-55 - His Master's Voice HMV, H.M.V.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 310 x 135 x 125 mm / 12.2 x 5.3 x 4.9 inch
  • Notes

  • This is another variant on the 68-55(2232).

    The 68-55(2232) used revised circuitry with the introduction of silicon transistors in the RF and IF stages but germanium transistors in the output stages. A total of 7 transistors.

    The 68/2-55 uses 8 silicon transistors and revised circuitry in the AF stages. The circuit board is revised to bring the TO126 output transistors (without heatsinks) onto the board.

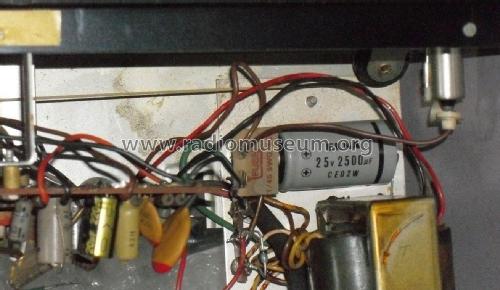

    The half wave rectified power supply is similar but the output voltage is indicated on the schematic as 24 Volts as compared to the 22 Volts on the 68-55(2232).



  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Brian Wilson. See "Data change" for further contributors.
