812; His Master's Voice (ID = 2284055) Radio
His Master's Voice: 812 [Radio] ID = 2284055 1330x998
Select picture or schematic to display from thumbnails on the right and click for download.
For model 812, His Master's Voice (HMV, EMI); Bruxelles

Country:  Belgium
Manufacturer / Brand:  His Master's Voice (HMV, EMI); Bruxelles
Year: 1953 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SA7 12SK7 12SQ7 50L6GT EM4 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 454 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 812 - His Master's Voice HMV, EMI;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 475 x 300 x 215 mm / 18.7 x 11.8 x 8.5 inch
Notes

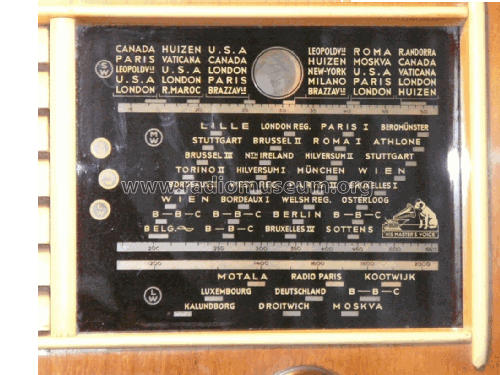

3 wavebands
SW: 14 - 51.5 m
MW: 190 - 550 m
LW: 1175 - 2000 m

See also model HMV 811 for AC/DC.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 4'800.00 BEF
Mentioned in -- Original prospect or advert

Model page created by Hendrik van Hooijdonk. See "Data change" for further contributors.
