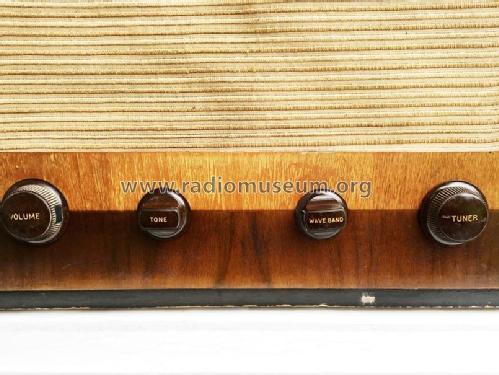

830; His Master's Voice (ID = 1996463) Radio 830; His Master's Voice (ID = 1996464) Radio
830; His Master's Voice (ID = 1996466) Radio
Use red slider bar for more.
830; His Master's Voice (ID = 1996461) Radio
His Master's Voice: 830 [Radio] ID = 1996461 1400x983
Select picture or schematic to display from thumbnails on the right and click for download.
For model 830, His Master's Voice (HMV, EMI); Bruxelles:
Frontansicht

Country:  Belgium
Manufacturer / Brand:  His Master's Voice (HMV, EMI); Bruxelles
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: X61M KTW61 DH63M KT61 U50
Main principle Super-Heterodyne (Super in general); ZF/IF 454 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 830 - His Master's Voice HMV, EMI;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 390 x 260 mm / 22.4 x 15.4 x 10.2 inch
Notes

Chassis ist nahezu idendisch mit Typ 813.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

Model page created by Rolf Beckers. See "Data change" for further contributors.
