All-World Autoradiogram 660

All-World Autoradiogram 660; His Master's Voice (ID = 342265) Radio All-World Autoradiogram 660; His Master's Voice (ID = 342266) Radio
All-World Autoradiogram 660; His Master's Voice (ID = 342270) Radio All-World Autoradiogram 660; His Master's Voice (ID = 342271) Radio
All-World Autoradiogram 660; His Master's Voice (ID = 342287) Radio All-World Autoradiogram 660; His Master's Voice (ID = 342289) Radio
All-World Autoradiogram 660; His Master's Voice (ID = 342291) Radio All-World Autoradiogram 660; His Master's Voice (ID = 656737) Radio
Use red slider bar for more.
All-World Autoradiogram 660; His Master's Voice (ID = 342265) Radio

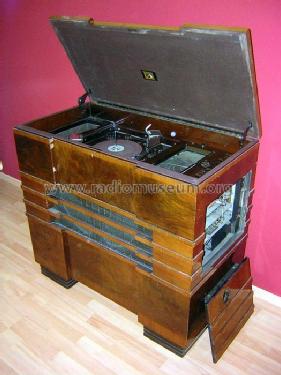

His Master's Voice: All-World Autoradiogram 660 [Radio] ID = 342265 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model All-World Autoradiogram 660, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
Fundzustand

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: KTZ63 X64 W63 Y63 D63 KTZ63 W63 W63 U50 KT63 KT63
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 195-255 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: All-World Autoradiogram 660 - His Master's Voice Masters,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 970 x 890 x 500 mm / 38.2 x 35 x 19.7 inch
Notes Record changer for up to eight 10" and 12" discs.
Das Gerät besitzt einen Plattenwechsler für 25 cm und 30 cm Platten. Es können 8 Platten nacheinander abgespielt werden. Three SW-bands 5-107 m.
Price in first year of sale 60.00 GNS
Source of data - - Data from my own collection

Model page created by Nico Pokrant. See "Data change" for further contributors.
