Auto-Radiogram 1614

Auto-Radiogram 1614; His Master's Voice (ID = 2398174) Radio Auto-Radiogram 1614; His Master's Voice (ID = 2398175) Radio
Auto-Radiogram 1614; His Master's Voice (ID = 2398176) Radio Auto-Radiogram 1614; His Master's Voice (ID = 2398177) Radio
Auto-Radiogram 1614; His Master's Voice (ID = 2398178) Radio Auto-Radiogram 1614; His Master's Voice (ID = 2398179) Radio
Use red slider bar for more.
Auto-Radiogram 1614; His Master's Voice (ID = 2398174) Radio

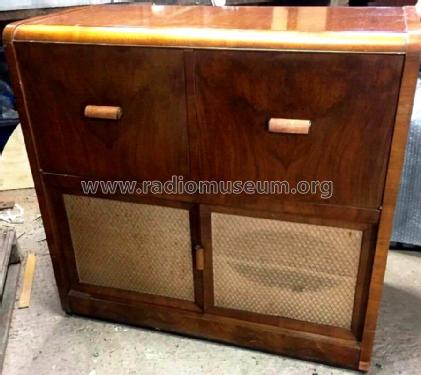

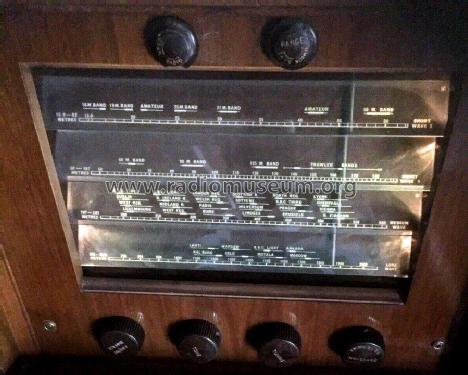

His Master's Voice: Auto-Radiogram 1614 [Radio] ID = 2398174 900x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto-Radiogram 1614, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
Ebay UK auction item 333222121326 seller nouvelevievintage

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: X78 W77 DH77 KT61 U10
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (max.)
from Radiomuseum.org Model: Auto-Radiogram 1614 - His Master's Voice Masters,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 35.5 x 33 x 18 inch / 902 x 838 x 457 mm
Notes

A console radiogram with an HMV 45000AL autochanger and a 2 x SW (16-50 metres and 50-187 metres), MW (187-582.5 metres) and LW (719-2026 metres) radio. With a 13½ inch elliptical loudspeaker.

Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual Model 1614 5 valve console auto-radiogram dated October 1951)

Model page created by Howard Craven. See "Data change" for further contributors.
