Bijou P7-96

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: 6ES8 6BL8 6BY7 6BX6 6U8 6DX8 6U8 6BM8 6BM8 12AU7 6CM5 1S2 6AL3 AW59-90
Semiconductors (the count is only for transistors) OA210 OA210 OA79 OA79 OA80 OA81 OA81 M3
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Bijou P7-96 - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Console with any shape - in general
Notes

Cabinet finishes available in Walnut, Maple & Rosewood.

Price in first year of sale 177.45 AUS £

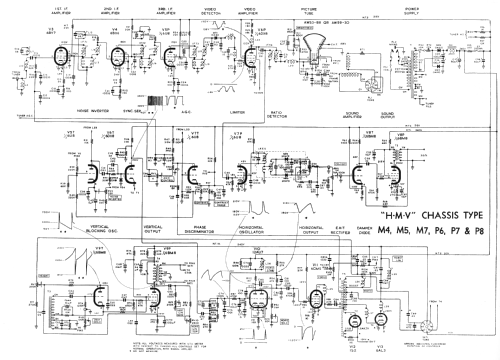

Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Chassis Type P7.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & Vol. 2, 1967, Page H30.)

Model page created by Martin Kent. See "Data change" for further contributors.
