Boston PR-AE Ch= PR

Boston PR-AE Ch= PR; His Master's Voice (ID = 2316586) Television Boston PR-AE Ch= PR; His Master's Voice (ID = 2316599) Television
Use red slider bar for more.
Boston PR-AE Ch= PR; His Master's Voice (ID = 2316586) Television

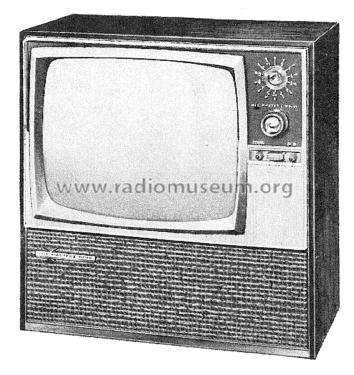

His Master's Voice: Boston PR-AE Ch= PR [Television] ID = 2316586 1400x1479
Select picture or schematic to display from thumbnails on the right and click for download.
For model Boston PR-AE Ch= PR, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
From brochure courtesy of Stephen Pitcher.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1963–1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 6ES8 6HG8 6BY7 6EJ7 6EJ7 6DX8 6CS6 6U8 6BX6 6GW8 6BM8 12AU7 6CM5 1S2 6AL3 23HP4
Semiconductors (the count is only for transistors) 1: OA90 OA90 OA210 OA210 M3 AA119 AA119 OA91 OA91 AC128 OA610 OA610 OA91
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 230-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Boston PR-AE Ch= PR - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 28.5 x 30.25 x 17 inch / 724 x 768 x 432 mm
Notes

Remote control version of Boston PP-AE series.

Cabinet finishes available in Walnut, Maple & Rosewood.

Net weight (2.2 lb = 1 kg) 126 lb 0 oz (126 lb) / 57.204 kg
Price in first year of sale 213.15 AUS £
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Chassis Types PQ & PR.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (L.J. Series Vol. 2. 1967, Page H39.)

Model page created by Martin Kent. See "Data change" for further contributors.
