C1-82 Ch= C1

C1-82 Ch= C1; His Master's Voice (ID = 2066903) R-Player

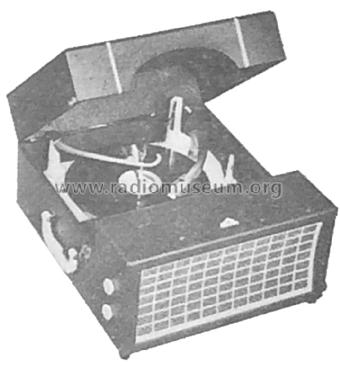

C1-82 Ch= C1; His Master's Voice (ID = 2406989) R-Player C1-82 Ch= C1; His Master's Voice (ID = 2098808) R-Player
Use red slider bar for more.
C1-82 Ch= C1; His Master's Voice (ID = 2406989) R-Player
His Master's Voice: C1-82 Ch= C1 [R-Player] ID = 2406989 1196x1627
Select picture or schematic to display from thumbnails on the right and click for download.
For model C1-82 Ch= C1, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
From the Luther Moore collection.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1957–1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: 6AB8 6V4
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-225; 226-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: C1-82 Ch= C1 - His Master's Voice HMV, H.M.V.
Material Leather / canvas / plastic - over other material
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 14.5 x 8 x 15.5 inch / 368 x 203 x 394 mm
Notes

4-speed auto gramophone.

Colours available in Maroon, Grey, two tone Grey & two tone Green.

Price in first year of sale 49.35 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XIV
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for chassis type C1.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page H54.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 14, 1956, Page 157.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
