Cranbrook M1-B5 Ch= M1

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2023345) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2023346) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2197557) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2197571) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2197618) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2197623) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2197628) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2199256) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2199386) Television

Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2199447) Television
Use red slider bar for more.
Cranbrook M1-B5 Ch= M1; His Master's Voice (ID = 2023345) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: 6ES8 6BL8 6BY7 6BX6 6BX6 6DX8 6CS6 6U8 6BM8 6CW5 12AU7 6CM5 6AL3 1S2 AW53-88
Semiconductors (the count is only for transistors) OA90 OA79 OA79 OA81 OA81 OA210 OA210
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Cranbrook M1-B5 Ch= M1 - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 30 x 31 x 17.75 inch / 762 x 787 x 451 mm
Notes

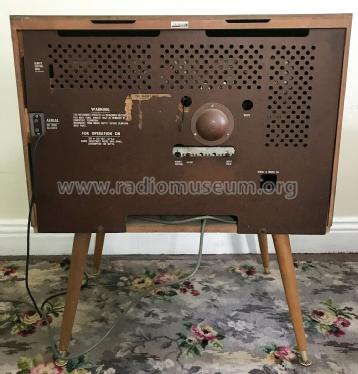

The Cranbrook M1-B5 is a 21" consolette with legs.
Legs are included in the set height. Cabinet is finished in walnut, maple or rosewood.

Price in first year of sale 184.00 AUS £
Mentioned in -- Original prospect or advert (Australian TV model guide & price list of 1960)

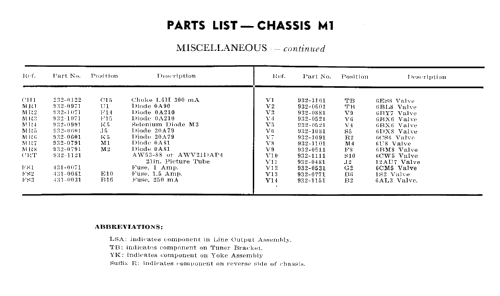

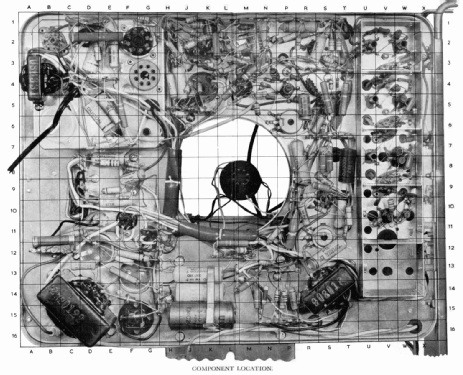

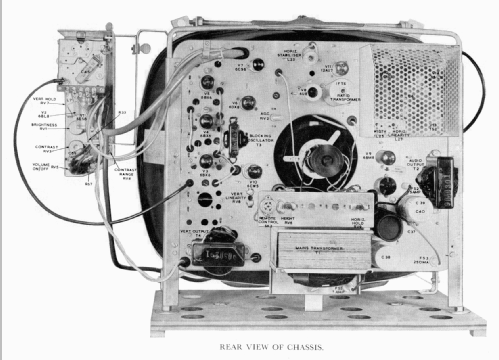

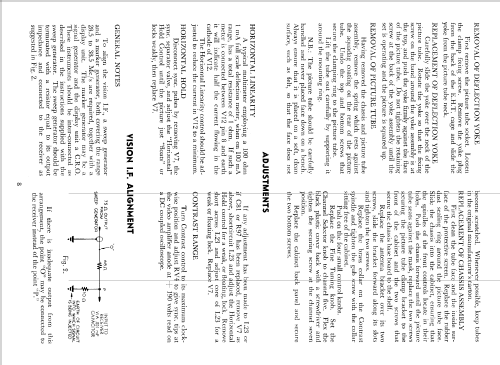

Literature/Schematics (1) - - Manufacturers Literature (HMV manufacturers data sheets for chassiss type M1)

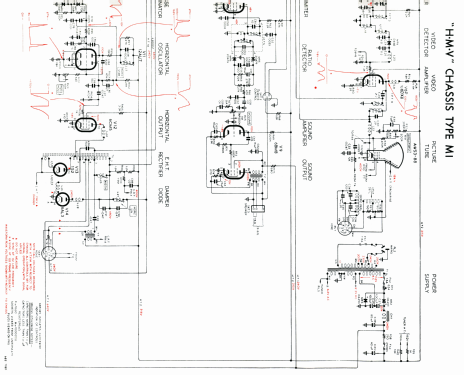

Literature/Schematics (2) -- Schematic (J. R. Publications "Television Service Handbook" Page H28.)

Model page created by Martin Kent. See "Data change" for further contributors.
