5100

• Country
• Great Britain (UK)

• Manufacturer / Brand
• His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17756

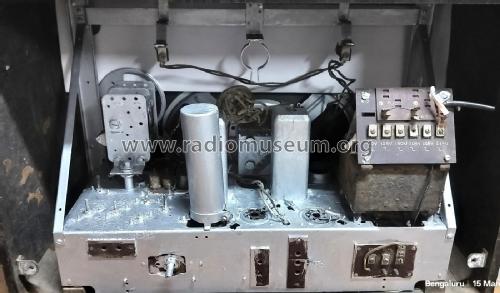

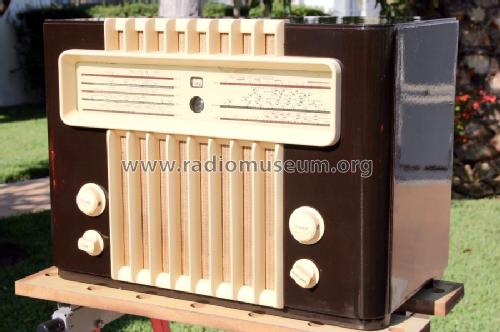

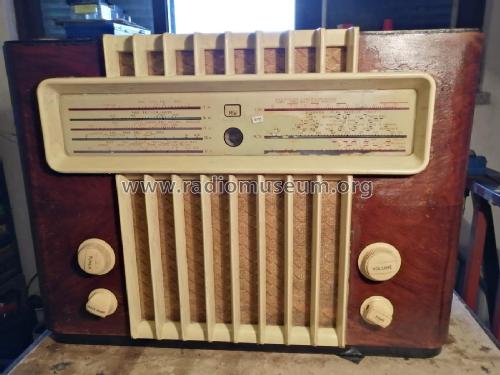

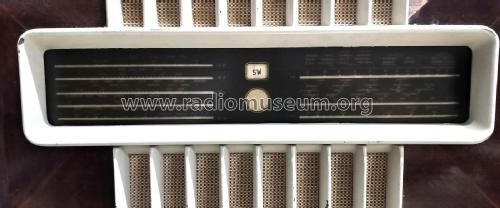

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• Y61 X61M KTW61 DH63 KT61 U10

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110,125,150,205,225,245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5100 - His Master's Voice Masters,

• Dimensions (WHD)
• 500 x 350 x 260 mm / 19.7 x 13.8 x 10.2 inch

• Notes
• 5 x KW

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 660.00 SFR

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
