- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103745

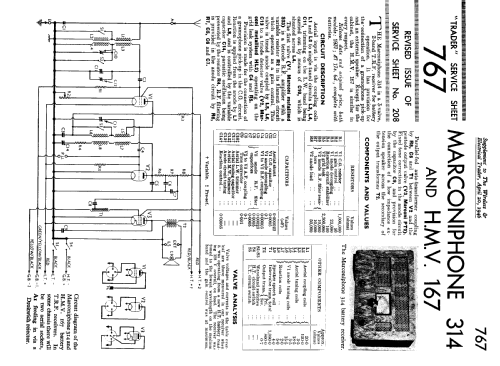

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 120 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 167 - His Master's Voice Masters,
- Shape
- Tablemodel, low profile (big size).
- Notes
- Identical to Marconi Marcophone 314.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
