H.M.V. 5201

H.M.V. 5201; His Master's Voice (ID = 2605163) Radio H.M.V. 5201; His Master's Voice (ID = 2605165) Radio
H.M.V. 5201; His Master's Voice (ID = 2605166) Radio H.M.V. 5201; His Master's Voice (ID = 2605168) Radio
H.M.V. 5201; His Master's Voice (ID = 2605167) Radio H.M.V. 5201; His Master's Voice (ID = 2605169) Radio
H.M.V. 5201; His Master's Voice (ID = 2605170) Radio H.M.V. 5201; His Master's Voice (ID = 284134) Radio
H.M.V. 5201; His Master's Voice (ID = 284136) Radio H.M.V. 5201; His Master's Voice (ID = 284137) Radio
Use red slider bar for more.

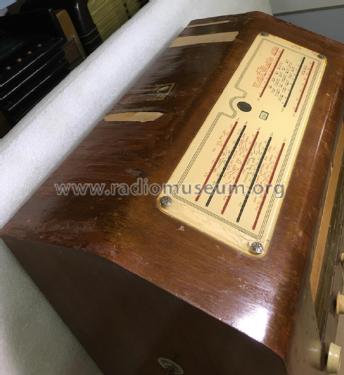

H.M.V. 5201; His Master's Voice (ID = 2605163) Radio
His Master's Voice: H.M.V. 5201 [Radio] ID = 2605163 1400x970
Select picture or schematic to display from thumbnails on the right and click for download.
For model H.M.V. 5201, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

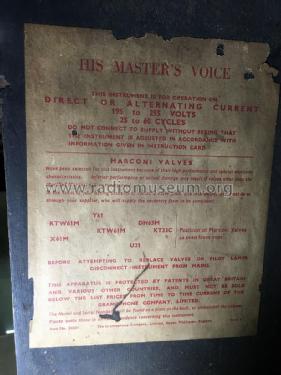

Valves / Tubes 7: KTW61M X61M KTW61M DH63M KT33C U31 Y61
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage AC/DC-set / 195-255 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 6 W (unknown quality)
from Radiomuseum.org Model: H.M.V. 5201 - His Master's Voice Masters,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 22.25 x 15.75 x 10.75 inch / 565 x 400 x 273 mm
Notes 6xSW,MW,LW. Magic Eye.
Source of data Radio! Radio!
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
