For model HMV Capri JB-1G CH= JB, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
Left side

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SE1010 or. BF195 SE1002 or. BF194 SE1001 or. BF195 SE2002 or. BC147 AC127 AC132 OA90 or. BA216 OA90 or. BA216
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 X 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.8 cm = 2.7 inch
Power out 0.1 W (max.)
from Radiomuseum.org Model: HMV Capri JB-1G CH= JB - His Master's Voice HMV, H.M.V.
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 95 x 50 mm / 7.1 x 3.7 x 2 inch
Notes

HMV Capri JB-1G;
Earphones jack, sold with carrying case.

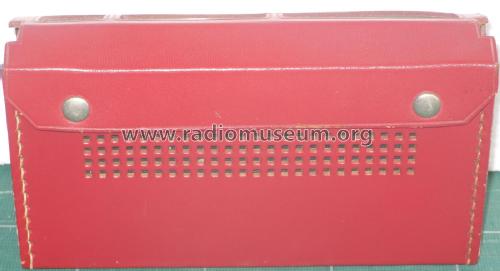

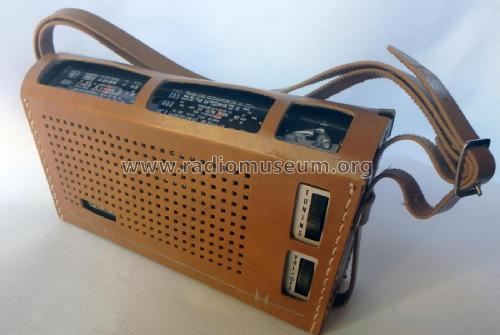

Speaker impedance is 50 Ohms @ 400 c/s. Battery type is Eveready 2362. Originally available in Charcoal with Silver trim. Carry cases were available in Red, Black or Tan.

A later version, introduced in 1968, has as the first 4 transistors as Philips types BF195 BF194 BF195 BC147. This occured after Fairchild Australia ceased manufacturing SE type transistors. Electrolytic caps C15 and C23 are 100µF in lieu of the 80µF shown in the schematic and C20 is 47µF in lieu of the 40µF shown. An even later radio has TR1 and TR3 as a BF495s. The electrolytic caps are as listed here.

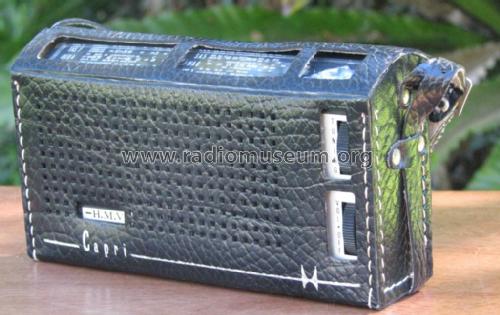

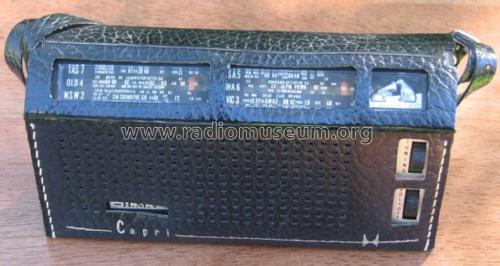

A later radio has a charcoal case with a black carry case embossed in a "snakeskin" pattern.

Net weight (2.2 lb = 1 kg) 1 lb 6 oz (1.375 lb) / 0.624 kg
Price in first year of sale 44.75 AUS $
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Model JB-1G.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group C5, 1968, Page H50.)
Documents about this model
  HMV Capri, Model JB-1G Operating Instructions. 1397 KB
