J5-18 Ch= J5

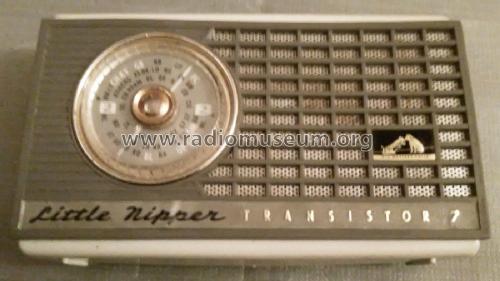

J5-18 Ch= J5; His Master's Voice (ID = 2097244) Radio

J5-18 Ch= J5; His Master's Voice (ID = 2097245) Radio
Use red slider bar for more.
J5-18 Ch= J5; His Master's Voice (ID = 2097244) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N412 2N410 2N410 2N406 2N408 2N408 2N408 GEX34 GEX34 GEX34
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out 0.15 W (undistorted)
from Radiomuseum.org Model: J5-18 Ch= J5 - His Master's Voice HMV, H.M.V.
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6 x 3.585 x 1.715 inch / 152 x 91 x 44 mm
Notes

Circuit uses push pull audio output and three GEX34 diodes configured as follows;

  • MR1 -  Detector and AVC
  • MR1 -  Detector and AVC
  • MR3 -  Overload Diode

Battery Eveready 2362, Berec PP22, National 106P, Ray-O-Vac RR362 & Toshiba T106P

Colour combinations available in Turquoise/White, BurgundyWhite, Dove Grey/White & Charcoal/White.

Net weight (2.2 lb = 1 kg) 1 lb 4 oz (1.25 lb) / 0.568 kg
Price in first year of sale 30.45 AUS £
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Chassis Type J5. [Also at KevinChant.com])
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Vol.1, 1960, Page H11.)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page H35.)
Literature/Schematics (4) Mingay's Radio Electrical Weekly Price Service (REWPS) (Aug 1960 to Feb 1962.)

Model page created by Martin Kent. See "Data change" for further contributors.
