Jamaica H5-8E Ch= H5

Jamaica H5-8E Ch= H5; His Master's Voice (ID = 1249269) R-Player
Use red slider bar for more.
Jamaica H5-8E Ch= H5; His Master's Voice (ID = 1249269) R-Player
His Master's Voice: Jamaica H5-8E Ch= H5 [R-Player] ID = 1249269 304x350
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jamaica H5-8E Ch= H5, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:

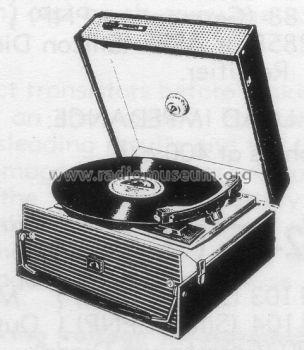

HMV model H5-8E from service manual front cover.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1966 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: AY1110 SE6002 AC128 AC127
Main principle Audio-Amplification; 3 AF stage(s)
Wave bands - without
Details Record Player (not changer)
Power type and voltage Dry Batteries / 8 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Jamaica H5-8E Ch= H5 - His Master's Voice HMV, H.M.V.
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.5 x 6 x 12.5 inch / 318 x 152 x 318 mm
Notes

Portable record player.

Battery powered portable 4-speed record player (BSR). This is a updated version of Jamaica model H3-8E/H4-8E.

Case colours available in Tan, Red & Charcoal.

Net weight (2.2 lb = 1 kg) 13 lb 8 oz (13.5 lb) / 6.129 kg
Price in first year of sale 77.70 AUS $
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manuals for Models H5-8E, JF-8E, C7-8E & U2-8E, May 1966.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group C4, 1967, Page H46.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
