For model Albany M1-A5 Ch= M1, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
HMV model M1-A5 console

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: 6ES8 6BL8 6BY7 6BX6 6BX6 6DX8 6CS6 6U8 6BM8 6CW5 12AU7 6CM5 6AL3 1S2 AW53-88
Semiconductors (the count is only for transistors) OA90 OA79 OA79 OA81 OA81 OA210 OA210
Main principle Superhet with RF-stage; 2 AF stage(s)
Tuned circuits 3 FM circuit(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Albany M1-A5 Ch= M1 - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 753 x 847 x 440 mm / 29.6 x 33.3 x 17.3 inch
Notes

Console TV on castors.

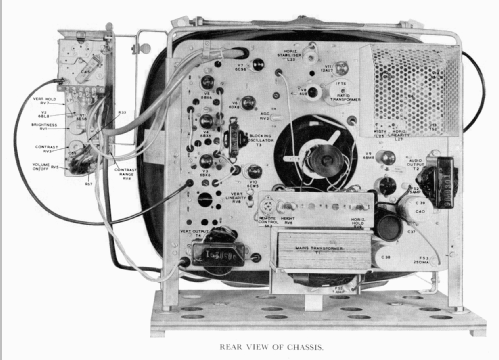

The M1 chassis was HMV Australia´s first TV to use 110 degree deflection; It uses a 53 cm CRT; It tunes the 10 VHF channels standard at the time.

Cabinet finishes available: Walnut, Maple & Rosewood.

Price in first year of sale 219.50 AUS £
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Chassis Type M1.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (L.J. Series Vol.1, 1962 & Vol. 2, 1967, Page H28.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
