Music Centre 45254 (519-0101)

Music Centre 45254 ; His Master's Voice (ID = 1724121) Radio Music Centre 45254 ; His Master's Voice (ID = 1724122) Radio
Music Centre 45254 ; His Master's Voice (ID = 1724123) Radio Music Centre 45254 ; His Master's Voice (ID = 1724124) Radio
Music Centre 45254 ; His Master's Voice (ID = 1724125) Radio Music Centre 45254 ; His Master's Voice (ID = 1724126) Radio

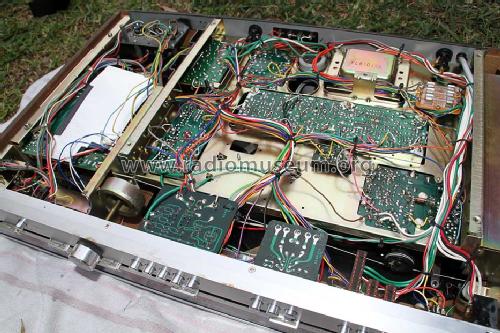

Music Centre 45254 ; His Master's Voice (ID = 1724127) Radio Music Centre 45254 ; His Master's Voice (ID = 1724128) Radio
Use red slider bar for more.
Music Centre 45254 ; His Master's Voice (ID = 1724121) Radio
His Master's Voice: Music Centre 45254 [Radio] ID = 1724121 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Music Centre 45254 (519-0101), His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1976–1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 25: 2SK19 2SC1047 2SC1359 2SC1359 2SC829 2SC900 2SC900 2SC923 2SC923 2SC900 2SC900 2SC923 2SC923 2SC1000 2SC1000 2SC1000 2SC1000 2SC732 2SC536 2SC732 2SC536 2SC1384 2SC372 2SC372 STK439
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Music Centre 45254 - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 100 x 385 mm / 23.6 x 3.9 x 15.2 inch
Notes

His Masters Voice Music Centre with AM/FM Radio, Cassette Recorder & Record Player.

Fitted with Audio-Technica belt driven turntable. Teak finish.

Made in Japan.

Price in first year of sale 468.00 AUS $
Mentioned in Mingay's Price Service (August 1976, Page 51.)

Model page created by Tom Antal. See "Data change" for further contributors.
