Vagabond O6-4L Ch= O6

Vagabond O6-4L Ch= O6; His Master's Voice (ID = 2099253) R-Player Vagabond O6-4L Ch= O6; His Master's Voice (ID = 2099255) R-Player

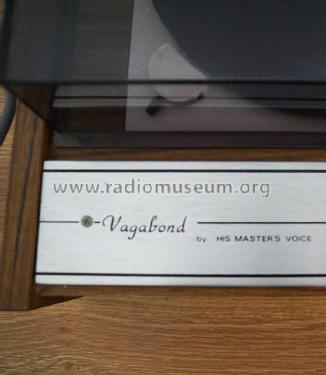

Vagabond O6-4L Ch= O6; His Master's Voice (ID = 2099254) R-Player Vagabond O6-4L Ch= O6; His Master's Voice (ID = 2099257) R-Player
Use red slider bar for more.
Vagabond O6-4L Ch= O6; His Master's Voice (ID = 2099253) R-Player
His Master's Voice: Vagabond O6-4L Ch= O6 [R-Player] ID = 2099253 1400x907
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vagabond O6-4L Ch= O6, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
From ebay seller theartglasshouse item #282429948246

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1970 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: BC149 BC149 BC158 BC158 OC987 OC988 OC987 OC988 BY126 or. AS25
Main principle Audio-Amplification; 3 AF stage(s)
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 240-250 Volt
Loudspeaker 2 Loudspeakers
Power out 2.4 W (unknown quality)
from Radiomuseum.org Model: Vagabond O6-4L Ch= O6 - His Master's Voice HMV, H.M.V.
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 15.88 x 5.5 x 12.88 inch / 403 x 140 x 327 mm
Notes

Stereo record player with separate speakers.

Three piece record player in Teak Laminate finish.

Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Models O5-4G, O6-4L, OA-4R & O7-4M.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group G8, 1971-72, Page H65.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
