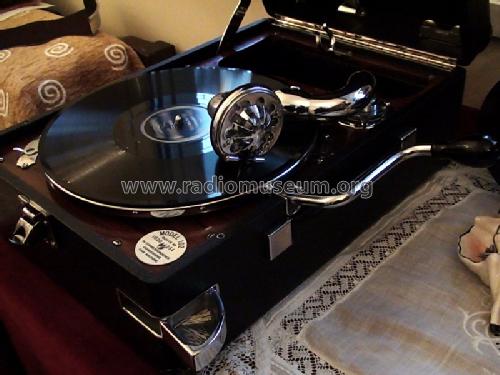

Portable Gramophone 102D

Portable Gramophone 102D; His Master's Voice (ID = 599931) TalkingM

Portable Gramophone 102D; His Master's Voice (ID = 599932) TalkingM
Portable Gramophone 102D; His Master's Voice (ID = 241184) TalkingM Portable Gramophone 102D; His Master's Voice (ID = 241185) TalkingM
Portable Gramophone 102D; His Master's Voice (ID = 241186) TalkingM Portable Gramophone 102D; His Master's Voice (ID = 241187) TalkingM
Portable Gramophone 102D; His Master's Voice (ID = 241188) TalkingM Portable Gramophone 102D; His Master's Voice (ID = 591340) TalkingM
Use red slider bar for more.
Portable Gramophone 102D; His Master's Voice (ID = 241184) TalkingM
His Master's Voice: Portable Gramophone 102D [TalkingM] ID = 241184 494x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Gramophone 102D, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1931 Category: Talking machine - Mechanical Gramophone/Phonograph
Wave bands - without
Details Record Player (not changer)
Power type and voltage Solar- and/or muscle driven, also addl. power jack possible
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Portable Gramophone 102D - His Master's Voice Masters,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 160 x 420 mm / 11.4 x 6.3 x 16.5 inch
Notes Model 102 was introduced 1929. Based on this a number of versions were sold until the 1950's.
Mechanical gramophone, 78 rpm. with auto break on/off.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 5.00 GBP
Source of data - - Data from my own collection
Mentioned in Veteran Talking Machines by Brian Jewell
Literature/Schematics (1) The Perfect Portabele Gramophone/ Dave Cooper

Model page created by Rudolf HEINZ. See "Data change" for further contributors.



All listed radios etc. from His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Here you find 395 models, 283 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
