For model Receiver Model X55, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
By courtesy of guest Knud Jensen, Denmark.

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1930 ?? Category: Broadcast Receiver - or past WW2 Tuner

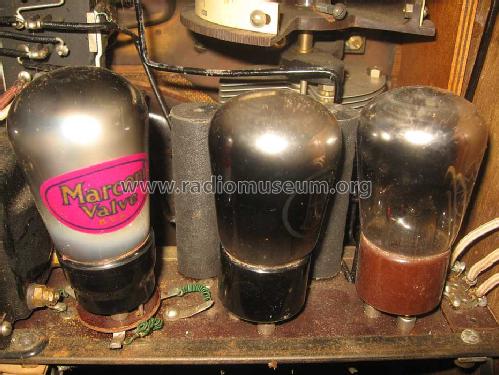

Valves / Tubes 5: HL210 HL210 H2 L210 P215
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Receiver Model X55 - His Master's Voice Masters,
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)

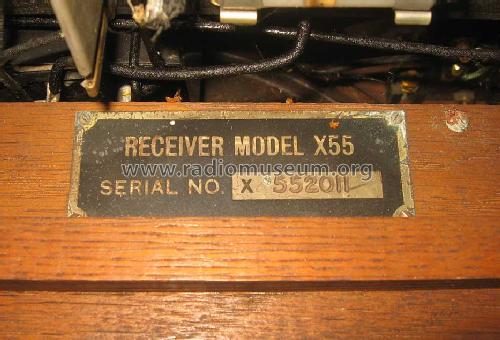

Notes The nameplate reads: "Receiver Model X55" and the dog "Nipper" listening tells us that it is a "His Master's Voice (HMV)" model. On the original, this writing can also be seen just above the picture. The tubes (valves) given are not all original and we have put in what was in the set only. We would like to know about this early portable radio.
External source of data Guest Knud Jensen, Denmark.

Model page created by Ernst Erb. See "Data change" for further contributors.
