Record Player 2030

Record Player 2030; His Master's Voice (ID = 2644874) R-Player Record Player 2030; His Master's Voice (ID = 2644875) R-Player
Record Player 2030; His Master's Voice (ID = 2644876) R-Player Record Player 2030; His Master's Voice (ID = 2644877) R-Player
Use red slider bar for more.
Record Player 2030; His Master's Voice (ID = 2644874) R-Player
His Master's Voice: Record Player 2030 [R-Player] ID = 2644874 660x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Record Player 2030, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
ebay uk auction item_133747599139 seller escortanglia1

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1968 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 6: U3540/1 AC156 AC156 U3847 AD162 AD161
Main principle Audio-Amplification
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Record Player 2030 - His Master's Voice Masters,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

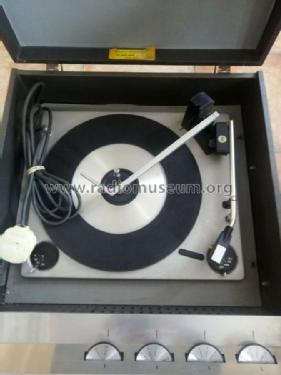

A portable AC mains record player with a 5 watt transistorized mono amplifier, a BSR UA15 Superslim autochanger with a BSR C1 cartridge and an 8 x 5 inch elliptical loudspeaker. Input sockets for microphone and radio, output sockets for tape recorder and stereo (left channel).

Similar to the Ferguson 3020 and Ultra 6018 record players.

Literature/Schematics (1) -- Original-techn. papers. (ERT Service Chart 1665 for HMV 2030, Ferguson 3020, Ultra 6018 dated Oct 10 1968)

Model page created by Howard Craven. See "Data change" for further contributors.
